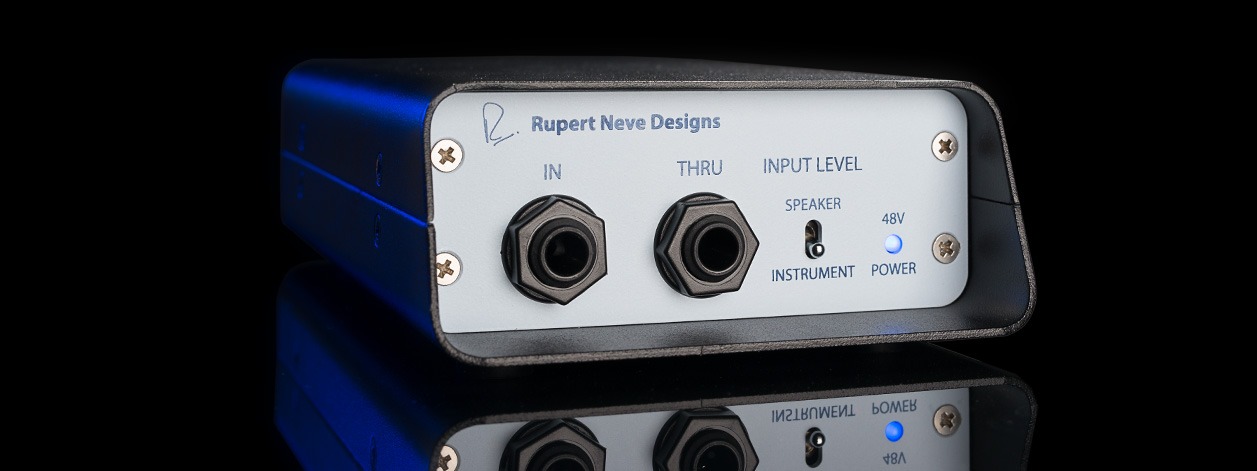

What is a DI Box?
A Direct InBox, commonly referred to as a DI Box, is a device that converts unbalanced, high-impedance signals into balanced, low-impedance signals. This conversion is crucial for sending audio signals over long distances without degrading the sound quality. DI Boxes are commonly used to connect instruments like electric guitars, basses, keyboards, and other electronic devices to a mixing console or audio interface.
Functions of a DI Box
Signal Conversion: Converts high-impedance instrument signals to low-impedance microphone-level signals, which are less susceptible to noise and interference.
Ground Lifting: Eliminates ground loop hum and buzz by disconnecting the ground connection between the source and the destination.
Balancing Audio Signals: Balances the audio signal, allowing it to travel longer distances without significant signal loss or interference.
Impedance Matching: Matches the impedance of the instrument to the input of the mixing console, ensuring optimal signal transfer and sound quality.
Types of DI Boxes
Passive DI Box: Uses a transformer to perform signal conversion and balancing. It does not require external power and is typically more durable and simpler to use. However, it might not provide the same level of performance with high-output sources as active DI Boxes.
Active DI Box: Uses electronic circuitry to perform its functions and requires a power source, either through batteries or phantom power from the mixing console. Active DI Boxes can handle a wider range of signals and provide better performance with low-level sources like acoustic guitars.
Benefits of Using DI Boxes on a Worship Stage
Improved Sound Quality: By balancing and converting audio signals, DI Boxes help ensure that the sound remains clear and free from noise or interference, even over long cable runs.
Noise Reduction: Ground lift functionality can eliminate hum and buzz caused by ground loops, providing a cleaner sound for both the congregation and recordings.
Flexibility in Setup: DI Boxes allow for greater flexibility in stage setup, enabling the use of various instruments and electronic devices without compromising sound quality.
Protecting Equipment: By matching impedance and providing proper signal levels, DI Boxes help protect both the instruments and the mixing console from potential damage due to incompatible signal levels.
Enhanced Mobility: Musicians can move freely on stage without worrying about signal degradation, as DI Boxes ensure consistent sound quality regardless of the distance from the mixing console.
Integrating DI Boxes into Your Worship Stage Setup
Determine which instruments and electronic devices will benefit from DI Boxes. Common candidates include electric and acoustic guitars, basses, keyboards, and electronic drum kits.
Once you’ve decided how you are going to use the DI Boxes, select between passive and active DI Boxes based on the specific needs of your instruments. Active DI Boxes are generally better for low-output instruments, while passive DI Boxes work well with high-output sources.
Placement and connection is important! Place the DI Boxes near the instruments to minimize the length of unbalanced cables. Connect the instrument to the DI Box using a short, high-quality instrument cable, and then connect the DI Box to the mixing console using a balanced XLR cable.
Use the ground lift as needed. Engaging the ground lift switch on the DI Box if you encounter hum or buzz in the audio signal will disconnect the ground loop and eliminate the noise.
Once everything is connected – before the worship service – thoroughly test all connections and signal paths to ensure everything is working correctly and that there are no issues with noise or signal loss.
DI Boxes are essential tools for achieving high-quality sound on a worship stage. They offer numerous benefits, including improved sound quality, noise reduction, and enhanced flexibility in stage setup. By understanding the functions and types of DI Boxes, and integrating them effectively into your worship stage setup, you can ensure a more professional and engaging worship experience for your congregation. Proper use of DI Boxes helps to create a seamless and immersive audio environment, allowing the focus to remain on the worship and message rather than technical issues.
